MOTION CONTROL · CLEVELAND, OHIO
CINEBOT NANO RENTAL

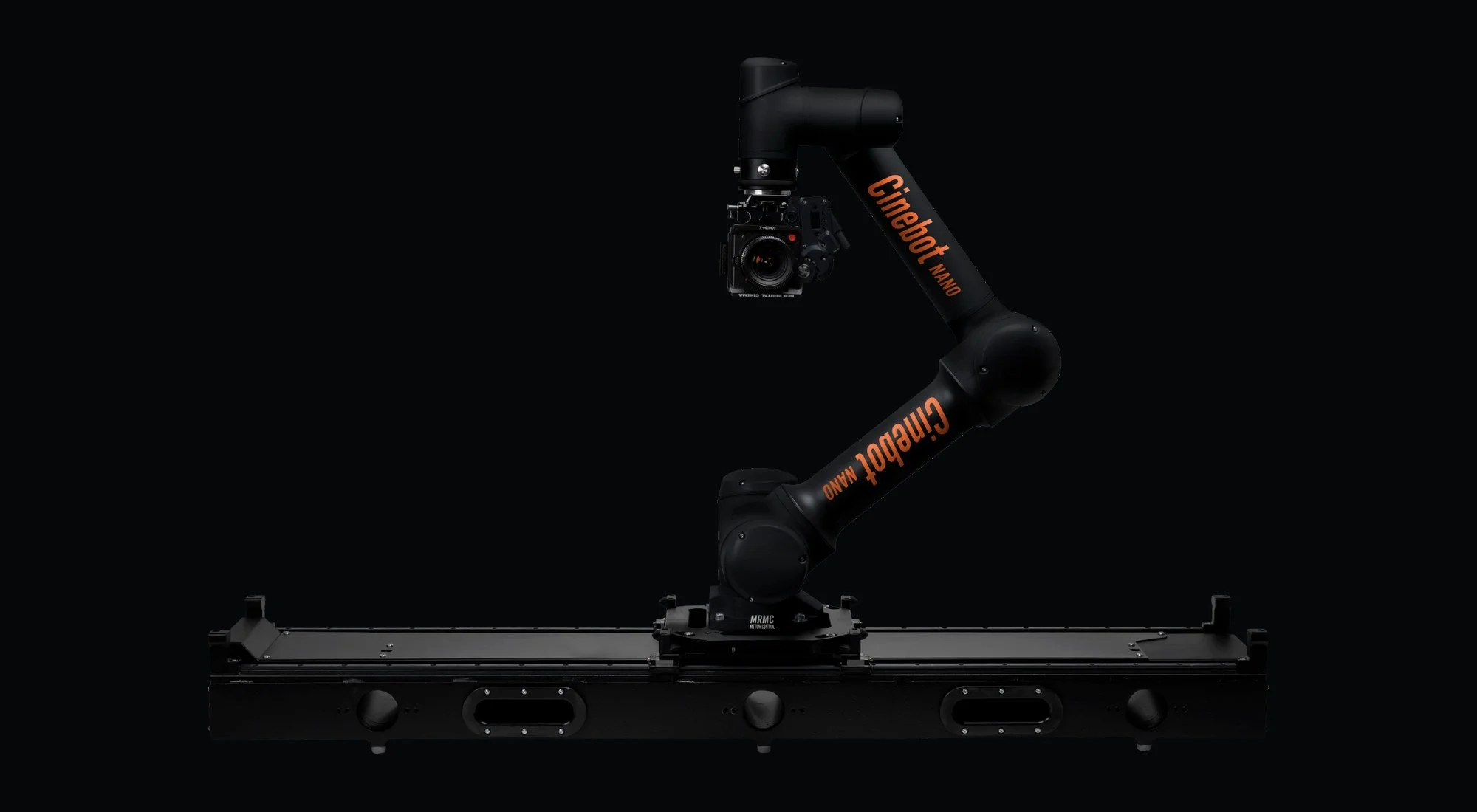

A compact 9-axis motion control robot on precision track. Frame-perfect, repeatable camera moves, operated by our motion control tech, on your set anywhere in the Midwest.
MAX SPEED
4.2 m/s
PAYLOAD
7 kg / 15 lb
REACH
1 m / 3′2″
WHAT IT DOES
The same move, every take.

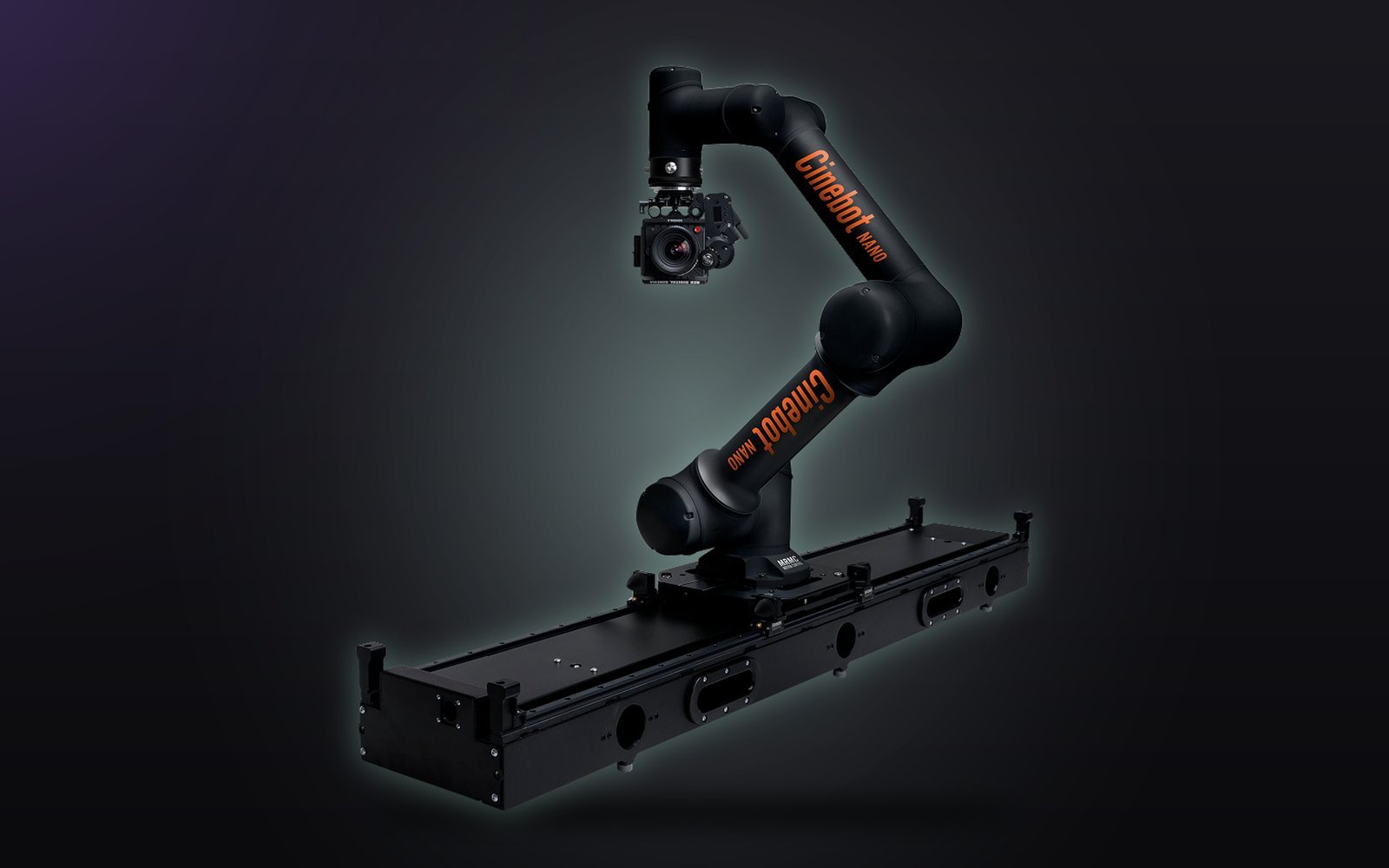

The Cinebot Nano is a robotic camera arm that plays back a programmed move with the same path, speed, framing and focus pull on every pass. Set your keyframes by pushing the arm into position by hand, hit play, and repeat the shot as many times as the day needs.
It’s small enough to come to you. The whole system packs into travel cases and sets up in minutes on our track, on tripods, on a tabletop, hung upside down or suctioned to a car.
9-AXIS ON TRACK · TECH-OPERATED · SHIPS IN CASES
FEATURES & CAPABILITIES
Big-rig motion control in a small package.
What the Nano brings to set, from the manufacturer’s spec and the kit we carry.
01
Repeatable
Every camera move under full control and played back identically, pass after pass.
03
Lens Control
Repeatable focus and zoom through the Tilta wireless system, with a hand controller for live pulls.
05
Precision Track
A 1.45 m ball-bearing track adds a ninth axis. No skate wheels, no plastic guides. Up to 4.2 m/s at camera.
07
Camera Sync
Start/stop and sync cables for RED Komodo and V-Raptor, ARRI Alexa, and DSLR or mirrorless bodies.
02
PushMoco® Control
Push the arm into position by hand, store the keyframe, hit play. Fast to program, easy for directors to follow.
04
Target Tracking
Lock the camera onto a point in space while the arm sweeps smoothly around it.
06
Mount It Anywhere
On tripods with Mitchell/Moy mounts, on tables, inverted from a ceiling, or on vehicles with electronic suction cups.
08
Travel-Ready
Arm, track and control box each pack into their own hard case. Case to shoot-ready in minutes.
Made for these shots
Motion control pays off any time a shot has to repeat exactly, or a move has to land on the same frame every take.
Food & Beverage
Pours, splashes, drops and ingredient builds. Reset the table and run the identical move until the hero take lands.
Product & Tabletop
Precise orbits, reveals and macro push-ins. Mount it on the table or hang it inverted to clear the set.
Car Rigs
Suction-mounted for interior and exterior moves, rigged by our grip team.
VFX & Compositing
Frame-identical passes for clean plates, clone shots and multi-element composites.
Beauty & Fashion
Fast, smooth sweeps on talent and product with repeatable focus for comparing takes.
Tight Locations
A crane-style move with a footprint small enough for kitchens, retail floors and small stages.
SEE IT IN ACTION
Cinebot Nano — Made for Motion Control On The Go
Video produced by MRMC (Mark Roberts Motion Control)
Nano Specs
Manufacturer specifications for the Cinebot Nano arm and track.
Operating Envelope

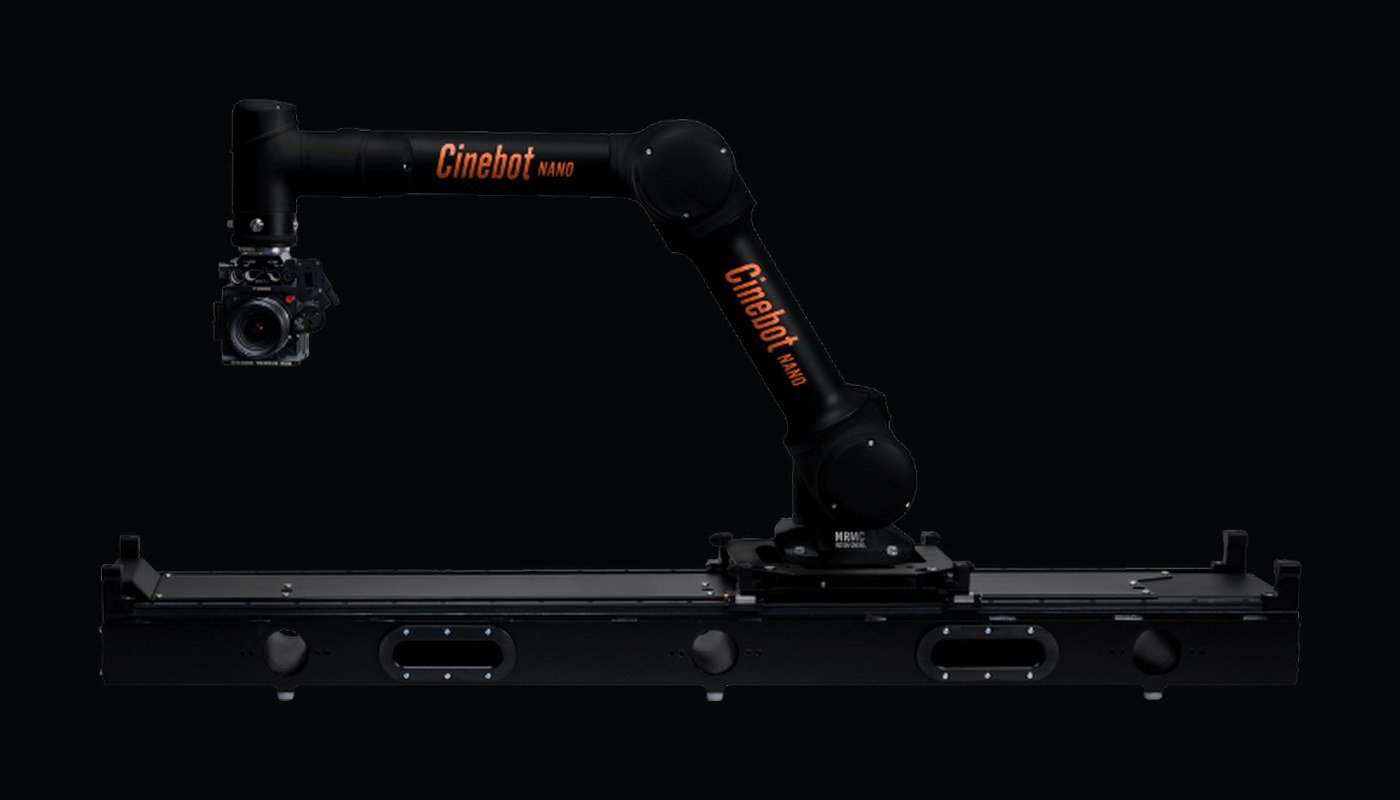

Max reach (from rotate centre): 1 m / 3′2″
Height from base: 1.3 m / 4′3″
Lowest position: −0.58 m / −1′11″
Max camera payload: 7 kg / 15.4 lb
Rig Performance
Arm arc move: 3.2 m/s at camera
Arm combined with track: 4.2 m/s at camera
Track: 1 m/s (1.45 m length)
Base rotation: ±360°, 200°/s
Shoulder lift: ±360°, 200°/s
Elbow: ±160°, 225°/s
Pan / Tilt / Roll: ±360°, 225°/s
Dimensions & Weights
Arm length: 1 m / 3′2″
Track length: 1.45 m / 5 ft
Track width: 23.5 cm / 9.3″
With outriggers: 90 cm / 35.4″
Arm weight: 25 kg / 54 lb
Track weight: 22 kg / 48.5 lb
Outriggers (pair): 2 kg / 4.5 lb
Total system weight: 49 kg / 108 lb
Power & Control
Power requirements: 110–264 VAC
Average consumption: Under 150 W
Axes: 9
Software: Flair Lite
Lens control: Tilta wireless, 2 motors
What’s in the package
Our Arm & Track Pro package goes out complete, ready for cinema cameras, lens control and the mounting your shot calls for.
Robot
Cinebot Nano arm, 1 m reach, 7 kg payload
1.45 m precision ball-bearing track
Camera platform with dovetail and PushMoco® handles
Control & Lens
Flair Lite motion control software
Portable Peli-case control box
Tilta wireless lens kit: 2 motors and hand controller
Mounting
Mitchell/Moy tripod mounts for the track (pair)
Tilta electronic suction cups and swivel mounts (4)
Ceiling and table suction plates for inverted rigs
Right-angle camera mount
Sync & Transport
RED Komodo / V-Raptor sync and trigger
ARRI Alexa sync
DSLR and mirrorless start/stop
Hard cases for arm and track
Cable management sheathing
Rent the Nano
The Cinebot Nano rents out of Cleveland for productions across Ohio and the Midwest. Tell us about your shoot and we’ll build the right package around it.
Availability
Send your shoot dates and we’ll confirm and hold the robot.
Technical Fit
Camera body, lens and accessories within the 7 kg / 15 lb payload, plus sync, power and mounting on your set.
Shot Planning
Share boards or references so our tech can plan moves and setups with your DP.
Rental Quotes
Call for a quote. Pricing built around your days, setups and the gear you pair with it.
Motion Control Tech
Every Nano rental is booked with one of our motion control technicians, who rigs, programs and runs the robot on set.
Pair It With G&E
Add lighting, grip, crew or our TechnoCrane from the same rental house.
Get in touch with us!
Planning a motion control shoot? Send us your dates, camera package and shot ideas, and we’ll get back to you with availability and a quote.
Rental Inquiries: support@ohiocinemotion.com · (216) 200-6682
